Please help with Breville Barista Express BES870SXL grinder assembly

mikebaumon

New member
Mar 12, 2020
2
0
I have this machine for 5 years, and did not have any issues whatsoever until i decided to grind old Kopi luwak i had, as a result clutch on machine was gone. After the incident i was not able to adjust grind size. It was stuck at some level and adjusting grind fine from the side was not giving any result. So i opened it up to see what is going on, could not find any broken parts, but i can't put it back parts together now, please help.

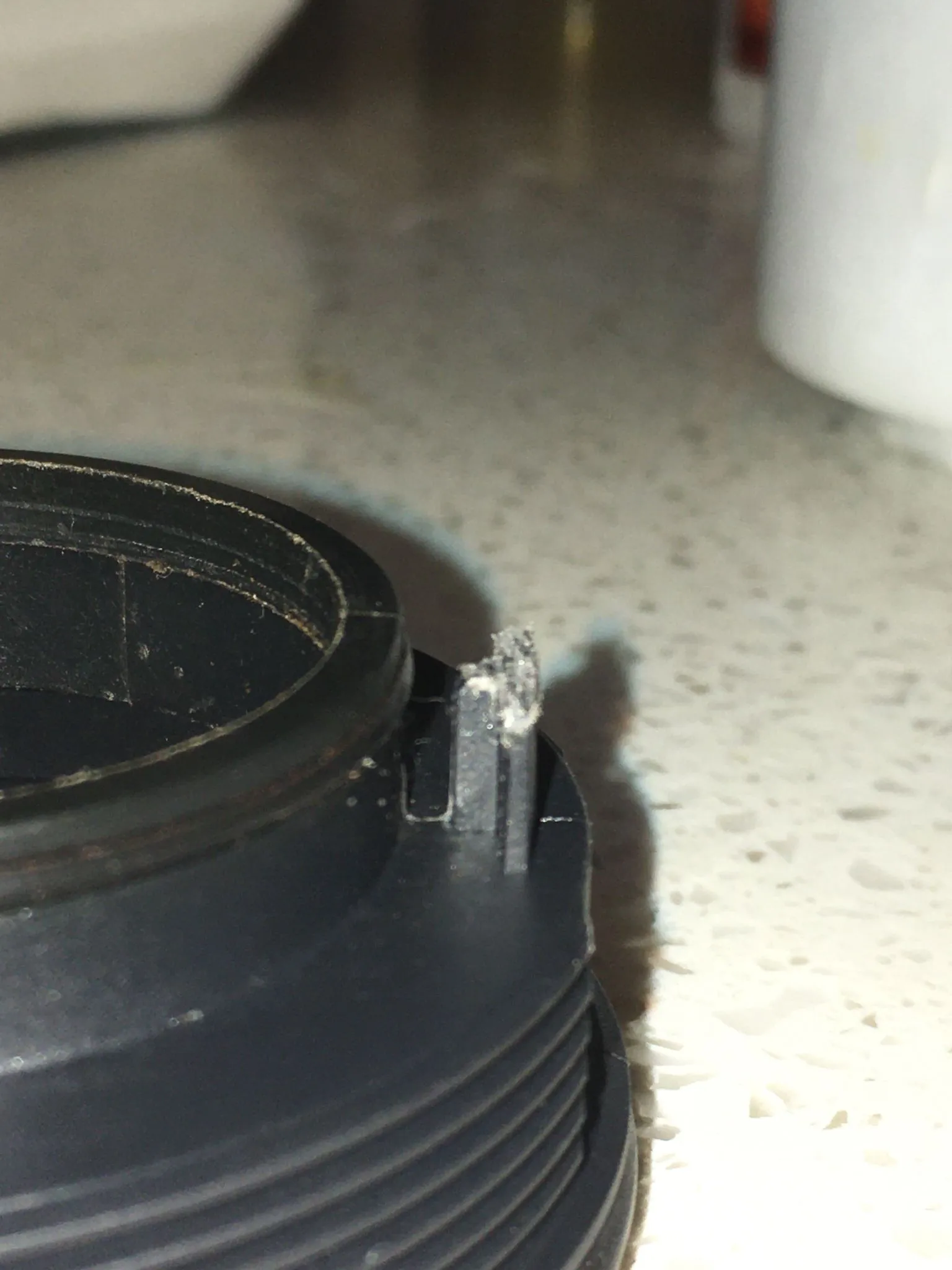

The problem is here is that i can get burr holder screw deep enough


Attachments

  • 756Q1PE.jpg
    482.1 KB · Views: 82
  • mcccDX0.jpg
    206.6 KB · Views: 75
  • up3OK9w.jpg
    337.1 KB · Views: 85
  • MMse7yP.jpg
    205.5 KB · Views: 81
  • GIxftZO.jpg
    220.2 KB · Views: 83
Last edited:
OP
M

mikebaumon

New member
Mar 12, 2020
2
0
  • Thread Starter
  • Thread starter
  • #2
I have this machine for 5 years, and did not have any issues whatsoever until i decided to grind old Kopi luwak i had, as a result clutch on machine was gone. After the incident i was not able to adjust grind size. It was stuck at some level and adjusting grind fine from the side was not giving any result. So i opened it up to see what is going on, could not find any broken parts, but i can't put it back parts together now, please help.
The problem is here is that i can get burr holder screw deep enough
Ended up buying from ebay (can't post link due to low messages on this forum). Thank you for response.
