For sale: 2kg Gas coffee roaster

ios

New member
Jun 7, 2018
20
0

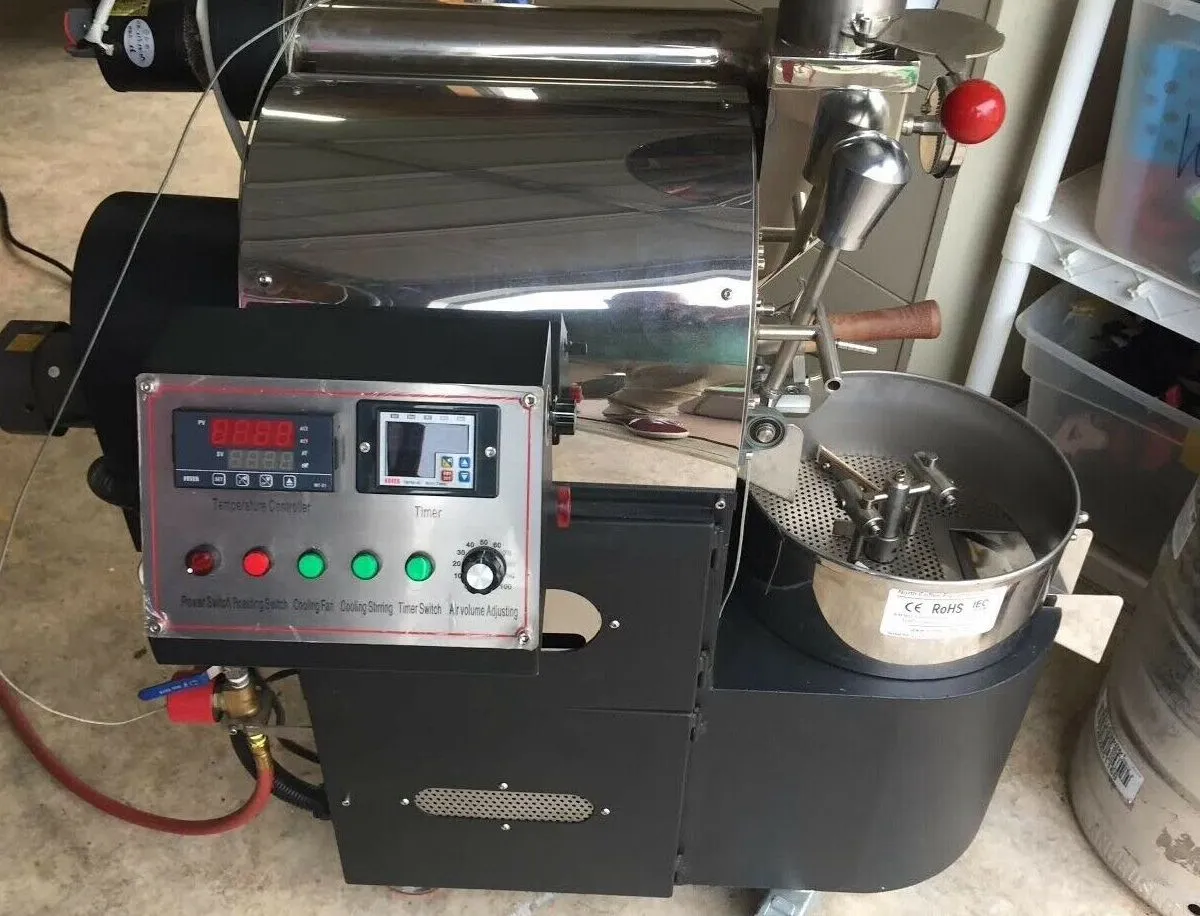

Up for sale is a nicely used 2kg Gas coffee roaster, in excellent condition.

More details of the machine.

Dimensions
Capacity/Output
Power
Gas
ROASTER SPECIFICATIONS
Roaster Size (length x width x height)
43.75 x 25.75 x 53.25 in (1111 x 654 x 1352 mm)


Roaster Weight
345 lbs (156.5 kg)


Chaff Collector Size (diameter x height)
15.75 x 37.75 in (400 x 958 mm)


Chaff Collector Weight
55 lbs (24.9 kg)
Drum Construction


Double-walled Drum, 430 Stainless Steel, Welded


Drum Size (diameter x length)
8.75 x 9 in (222 x 228 mm)


Cooling Tray Size (diameter)
12.4 in (315 mm)


Batch Size
0.4 - 2.4 kg


Average Roasting Time
< 15 minute batch


Production
17.6 lb/hr, 141.1 lb/day (8 kg/hr, 64 kg/day)


Roaster
Single Phase 220v, 15A, 50-60hz
Step-Up Transformer
120v to 220v, 1000W


Drum Motor
45W


Exhaust Fan Motor
50W


Cooling Fan Motor
50W


Cooling Tray Stirring Motor
15W


Fuel Type
Natural Gas -or- Propane


Max BTU
30,000


Burner Control
Manual Valve


Gas Connection
1/2" NPT


Gas Pressure Required
LP Gas: 16” of water column Natural Gas: 16” of water column


Gas Orifice Size
LP Gas: 0.7 mm (installed at factory)


Natural: 0.9 mm (see conversion/installation instructions)


Max Gas Usage
1.1 lb/hr (0.5 kg/hr)


Exhaust
Data Logging
Typical Roaster Exhaust High Temp
400°F - 450°F
Typical Chaff Collector Exhaust High Temp
300°F
Typical Cooling Tray Exhaust High Temp
180°F
Max Exhaust
250 CFM
Exhaust Venting Type Required
Class III, Positive Pressure
USB Logging Interface
Phidget 1048
Logging Thermocouples
BT, ET, Incoming Air
6 | PARTONE
2kg/5lbs Mill city commercial coffee roaster

My asking price is USD$4500 fully insured shipping or best reasonable offer.

If you are interested kindly reach me via PM/email
oi700840 at gmail dot com


Thanks


Attachments

  • roast1.jpg
    159.2 KB · Views: 178
  • roast2.jpg
    94.3 KB · Views: 163
