Help Please: I need Cuisinart EM-200 replacement parts help

jeffsguitars

New member
Oct 2, 2021
4
0
Oceanside CA
I have a EM-200 espresso maker. the copper part and the rubber connector connect to it in the picture circled need replaced.
does anyone know where i can order these parts and what's their names/model #?
is it the solenoid valve (120v)?
the parts are the valve from downstream of water pump. it's broken so the steam just released into the back/inside of the machine rather than the coffee brew head.
thanks
Cuesenart will not sell internal parts and opt for insisting on sending your unit to them and pay$$$. I found the part from <replacementparts.com>. It’s listed for a
Brevelli espresso machine and the part is a
“Solenoid Valve-Olab 9200H”. Below is a pic of it installed in my EM200. As the red marker indicates you have to reverse the large tube ends to make it fit.


Attachments

  • 2DEB9E7B-DE27-4DDC-886F-5CC84CA35416.jpeg
    423 KB · Views: 1

jeffsguitars

New member
Oct 2, 2021
4
0
Oceanside CA
Fixed!

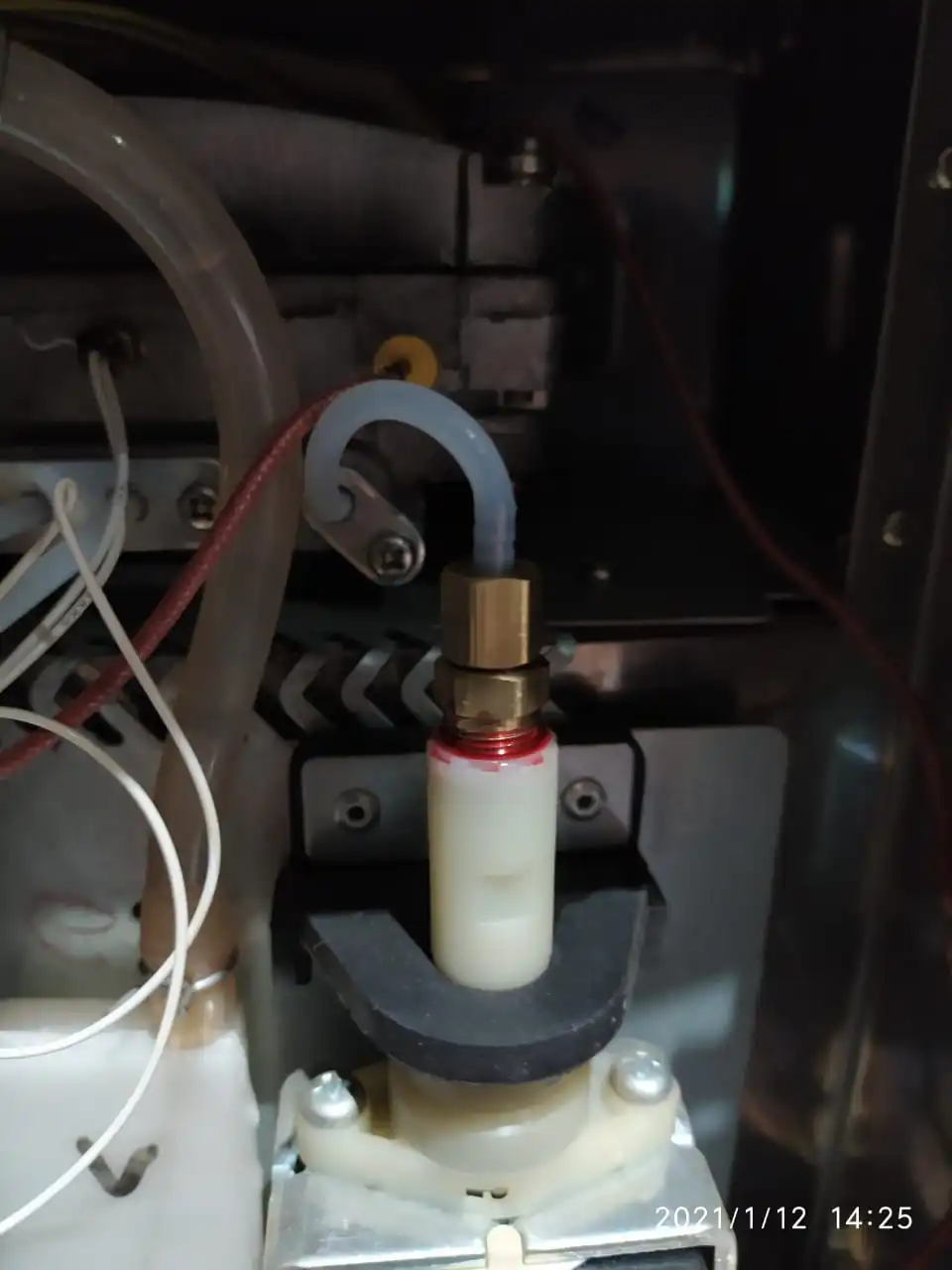

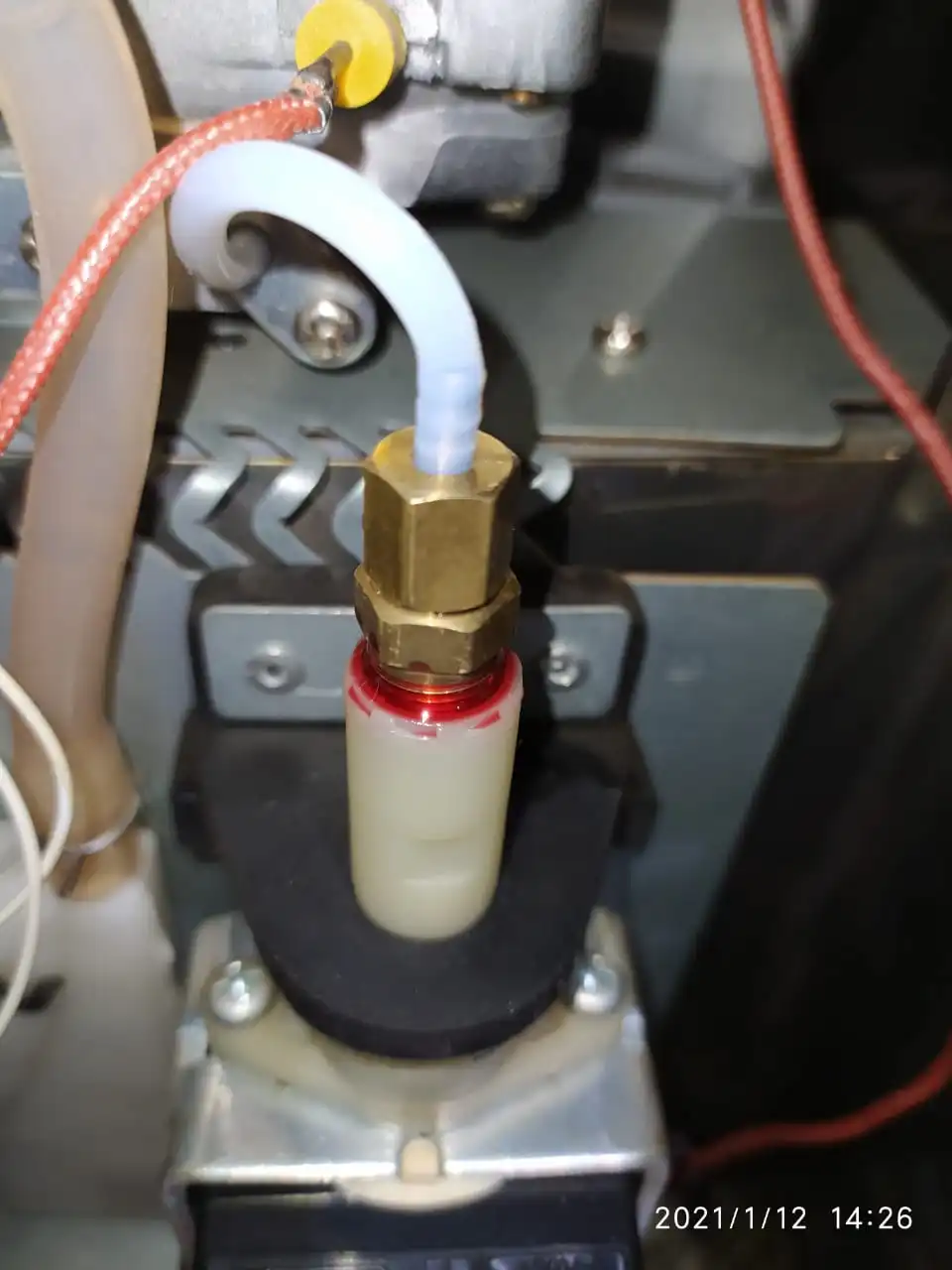

ok so i did fix the coffee maker cuisinart EM-200, i removed the teflon screw broken from the pump View attachment 10886View attachment 10888

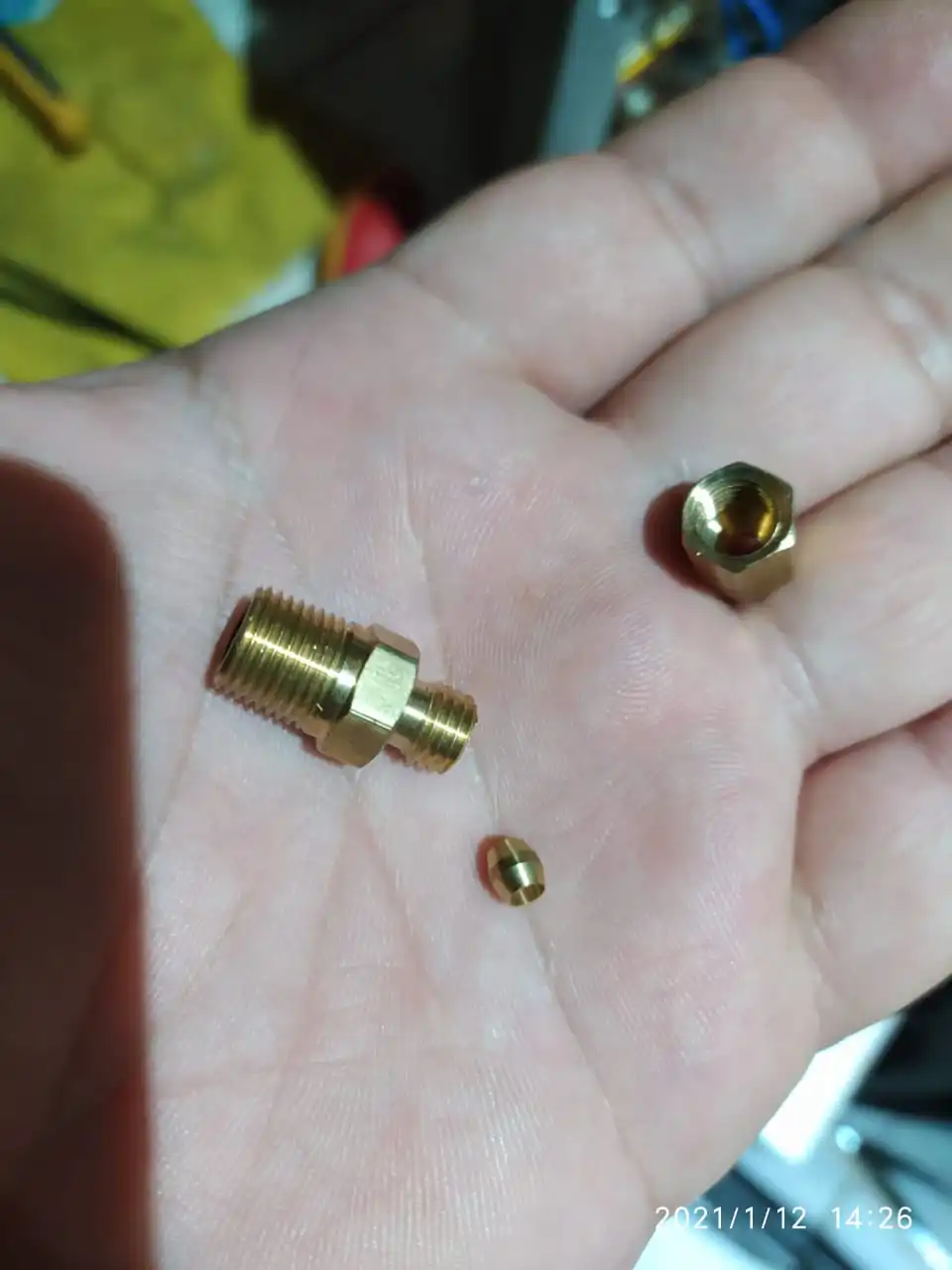

as the one i found was too big and didn't fit in the spot of the broken one, i used a compressor piece i think made of brassView attachment 10887 i had to remove some brass from the hole as the 4mm tube didn't fit in.
You also have to remove the inlet and the ring from the original tubeView attachment 10889 and use the inlet as a stopper inside the new cap as the brass cone didn't work with this rigid tube.

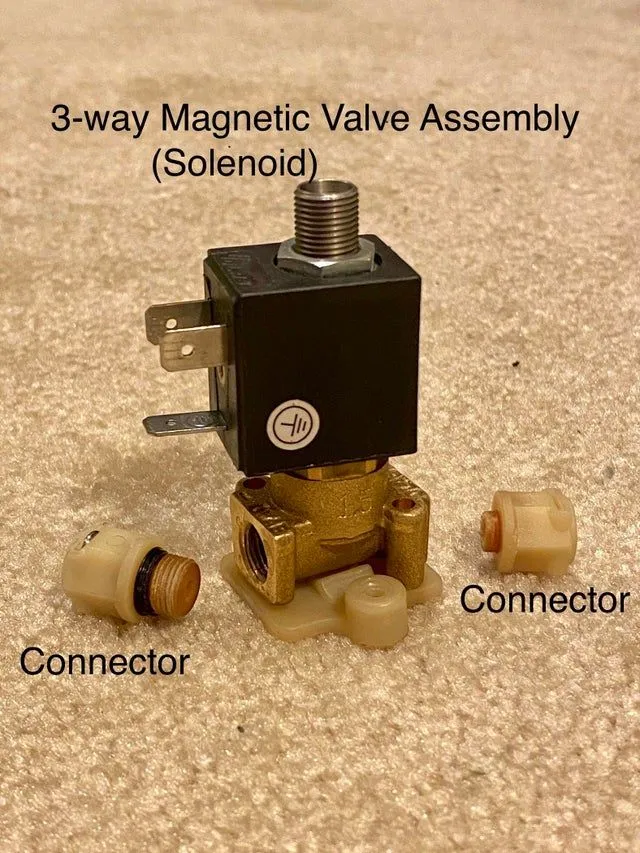

In the meanwhile i also found that the Breville Espresso machine BES820 View attachment 10885use the same connector and also the same solenoid if someone else need spare part can try searching for that machine as well.

i add the link to the spare part needapart.co.nz/buy-online/breville-espresso-machine-magnetic-valve-connection-10130119

REMEMBER TO PUT THE O-RING AROUND THE TUBE BEFORE TRY TO FIT IT INSIDE THE ORIGINAL TEFLON SCREWS OR IT CAN LEAK


Attachments

  • 541AFD3A-DC9A-4D70-87AB-FFA9C92AF63C.jpeg
    423 KB · Views: 1

jeffsguitars

New member
Oct 2, 2021
4
0
Oceanside CA
This is a “Solenoid Valve-Olab 9200H” from <replacement parts.com> It’s listed as a Brevelli part


Attachments

  • 5D51D37A-B335-4C28-8E82-1CB378D1F518.jpeg
    423 KB · Views: 0

jeffsguitars

New member
Oct 2, 2021
4
0
Oceanside CA
I have a EM-200 espresso maker. the copper part and the rubber connector connect to it in the picture circled need replaced.
does anyone know where i can order these parts and what's their names/model #?
is it the solenoid valve (120v)?
the parts are the valve from downstream of water pump. it's broken so the steam just released into the back/inside of the machine rather than the coffee brew head.
thanks
i managed to find that the valve is solenoid valve, made by italy. serial # 9000
OLAB-italy COIL 6000BHS/C6RU-UI, SERIE 9000. 120v. 60Hz
ED 100%, TF 135C TA 80C 230 psi

but olab does not give a spec on it's inlet valve size or thread info.

and i can't find information about the valve keeper connect to it.
is it called valve keeper or retainer?
Here’s a picture of that part installed in my EM200. Works better than the original. Everything fits. You have to take the large hose off and literally reverse it’s orientation, or in other words, backwards from the position it currently sits in order for it to fit over the threaded spigot without adding an additional fitting.


Attachments

  • A905280D-767D-4FF9-A988-45EC96DEC13D.jpeg
    423 KB · Views: 1
